What ground balance changes
Ground balance does not remove every difficult condition or identify the soil’s chemistry. It sets a reference point so the detector can respond more usefully to changes caused by a target. A good balance produces a calmer threshold, more consistent target response, and less reaction when the coil is pumped over clean ground. It should be checked again when soil color, moisture, or mineral content changes.
| Mode | How it works | When it helps | Watch for |
|---|---|---|---|
| Automatic | Detector selects a balance point | Starting in broadly consistent ground | Confirm on clean soil and re-check after moving |
| Manual | User adjusts while pumping the coil | Experienced users and unusual ground | Do not balance over a metal target |
| Tracking | Detector updates balance as ground changes | Long searches across variable soil | Read the manual; some target situations benefit from locking the balance |
A reliable balancing routine
- Find a clear patch of soil away from obvious metal and large rocks.
- Select the intended search mode and establish a stable sensitivity level.
- Follow the detector’s manual: usually raise and lower the coil smoothly while holding the ground-balance control or using auto balance.
- Listen for the response to reduce as the setting approaches the ground condition.
- Cross-check by sweeping the same area. If a localized signal remains, move away and balance again instead of balancing directly over it.
- Repeat after moving to a new soil type, slope, wet zone, or field with visibly different material.
Ground balance versus sensitivity
These controls solve different problems. Ground balance compensates for the soil response; sensitivity controls the strength of response the detector tries to report. A detector set to high sensitivity with poor ground balance will usually be noisy. First balance the ground, then set sensitivity for stability. If the machine remains unstable, reduce sensitivity and consider a different mode, frequency strategy, or coil.
Examples from Orient Detectors
The published MANTICORE specifications list automatic, manual, and tracking ground balance. This provides options for a fixed test patch and for a search route where soil changes. The machine also offers all-terrain, beach, and goldfield modes, so begin with the mode that fits the location before fine-tuning balance.
The Nokta The Legend 2 is a practical example of a modern multi-frequency detector whose results still depend on ground conditions. Its simultaneous multi-frequency capability does not remove the need to follow its manual’s ground-balance process.

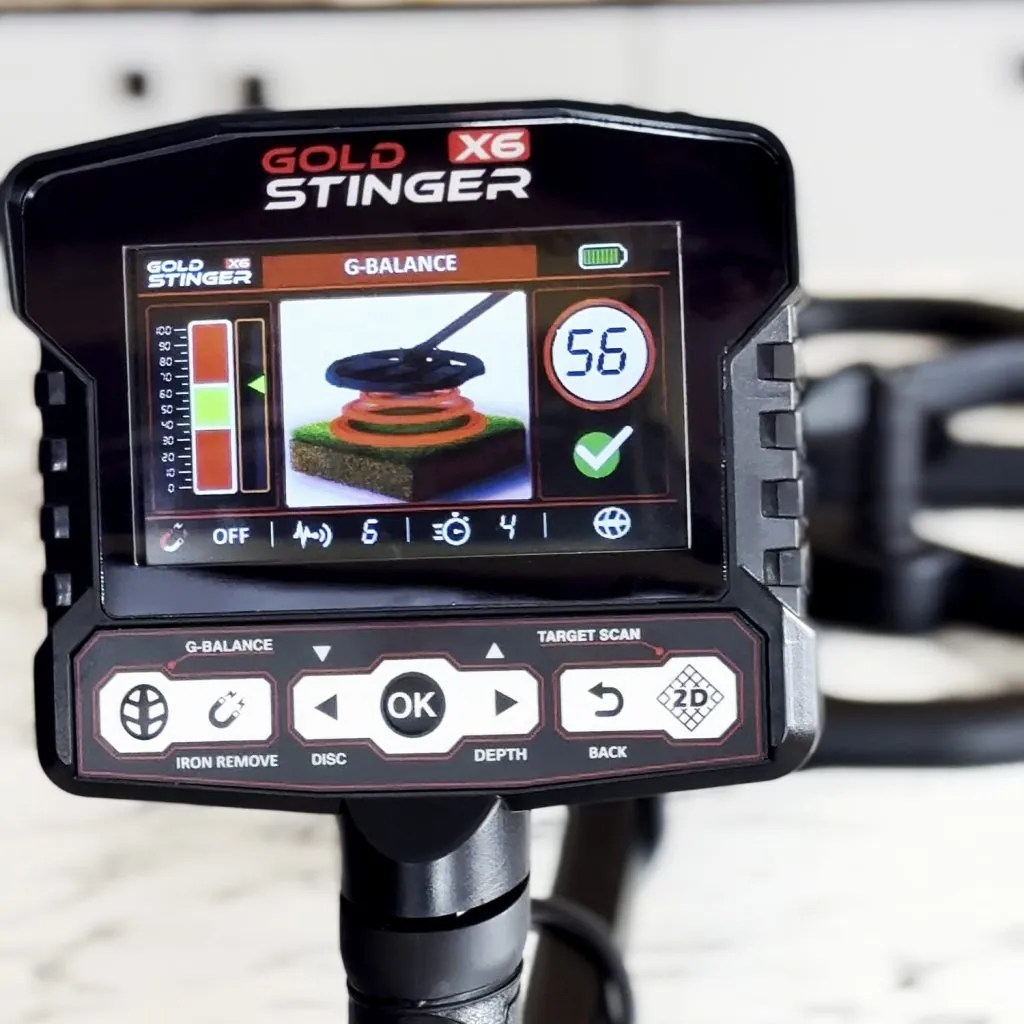

The Gold Stinger X6 lists advanced ground balance among its operational features. Use it alongside controlled sensitivity and a disciplined sweep. Its estimated-depth or visual functions should be interpreted only after the underlying signal is stable and repeatable.
Hot rocks and changing soil
A hot rock is a stone that produces a detectable response because its mineral content differs from nearby ground. Balance can reduce broad ground effects but may not silence each individual hot rock. Check a suspicious response by raising the coil, changing direction, and comparing its audio and pinpoint position. Avoid assuming every abrupt ground signal is a buried metal item.
Why the Ground Produces a Signal
A search coil does not examine a target in isolation. Its electromagnetic field passes through a volume of soil that may contain iron oxides, magnetic minerals, dissolved salts, moisture, charcoal, brick, and modern fill. These materials can change electrical conductivity and magnetic permeability. The detector therefore receives a combined response from the soil and anything inside it.
Ground balance establishes a reference for the normal soil response. When the reference is close to the real ground condition, the detector can devote more of its useful range to changes caused by targets. When it is incorrect, lowering the coil can create a tone, the threshold can drift, and target IDs can become unstable.
The U.S. Geological Survey has documented that rock and soil vary in electrical conductivity, dielectric properties, and magnetic permeability. A detector is not measuring those properties as a laboratory instrument, but the variation helps explain why settings that work in one field can behave differently a few kilometres—or a few metres—away.
Positive and Negative Ground Responses
In manual balancing, some detectors produce one type of audio as the coil approaches the ground and another as it rises. The manual may describe the machine as positively or negatively balanced. The required adjustment direction is model-specific, so do not transfer instructions from another detector.
The Legend manual provides a clear example: during manual balance, a low tone while pumping instructs the user to increase the ground-balance value, while a high tone instructs the user to decrease it. That exact relationship should not be assumed for every model. Follow the current manual and listen for the ground response to minimize.
A perfect silence is not always possible. In mixed or highly mineralized terrain, the goal may be the smallest consistent response rather than no response. If the value changes widely on repeated automatic balances, verify that the patch is free of metal and that coil movement is smooth and parallel.
Automatic Ground Balance
Automatic metal detector ground balance samples the ground while the user pumps or sweeps the coil and calculates a reference. It is fast and practical, but it still requires correct technique. The coil must move over representative ground without a buried target. Balancing above a nail or coin can teach the detector to compensate for part of the target response.
Nokta instructs Legend users to pump smoothly from roughly 15–20 cm above the ground to about 3 cm, keeping the coil parallel. The manual recommends repeating the operation and comparing the values. That procedure illustrates the general principle, but use the distances and button sequence specified for your detector.
If automatic balance fails, move to another clean patch. The ground may be too conductive, too weakly mineralized for a meaningful value, or contaminated by a target. Do not repeatedly balance over the same suspicious spot.
Manual Ground Balance
Manual balance lets the operator adjust the reference while listening to the difference between the upward and downward coil movement. It is useful when automatic balance needs a small correction or when experienced users want a deliberate bias for specific conditions.
Manual control should be approached carefully. An intentional offset can alter the response to small targets and ground. Without a controlled test, an operator may make the detector seem quieter by reducing useful target response. Record the automatic value first, make small changes, and compare a representative target.
Manual balance is also valuable educationally. Hearing the ground response become smaller shows how the soil affects the detector. Once the minimum is found, sweep normally and check whether the threshold remains stable.
Tracking Ground Balance
Tracking updates the ground reference as the detector moves. It can be useful where mineralization changes gradually across a field or goldfield. The detector must decide which repeated signals belong to soil, so tracking is not a reason to ignore target-checking technique.
When investigating a weak target, some manuals recommend switching to a fixed balance or pausing tracking so repeated sweeps do not influence the reference. The correct procedure depends on the model. Tracking also cannot instantly correct a sharp transition from dry sand to wet salt or from ordinary soil to a concentrated hot-rock patch.
Use tracking when its benefit is visible: a fixed balance becomes noisy as you walk, but tracking keeps the threshold controlled without erasing the test target. If the ground is uniform, fixed or automatic balance may offer a simpler baseline.
| Condition | Good starting method | Verification |
|---|---|---|
| Uniform mild park soil | Automatic balance or manufacturer default | Recheck after moving to a visibly different patch |
| Variable iron-mineralized field | Automatic then tracking if recommended | Compare a known target and monitor threshold |
| Experienced fine adjustment | Manual balance | Record starting value and change in small steps |
| Wet conductive beach | Dedicated beach mode and its specified balance routine | Test across wet/dry transition with constant coil height |
| Goldfield with hot rocks | Gold mode, frequent auto balance or tracking | Cross-check hot rocks and weak targets before rejection |
Ground Balance in Mild Soil
Some modern detectors are designed to operate effectively at a default value in many mild soils. That does not make ground balance irrelevant. Check the manual and perform a quick test. If pumping the coil over clean ground produces little or no response, the default may be adequate.
Unnecessary adjustment can introduce error, especially when the operator balances over contaminated ground. Beginners should start with the recommended mode and procedure rather than chasing a specific number seen in an online video. The value is a detector reference, not a universal soil-quality score.
Ground Balance in Highly Mineralized Soil
Iron mineralization can create a strong background signal and shorten the range over which target IDs remain accurate. Correct metal detector ground balance helps control this response. Use a suitable mode, balance carefully, and reduce sensitivity until operation is controlled. A smaller coil may help because it sees less ground volume and can separate targets from local mineral changes.
Target IDs at the edge of detection may drift toward the iron range or become inconsistent. Dig decisions should therefore consider audio repeatability and site context. An all-metal check can reveal whether discrimination is clipping a mixed ground-and-target response.
Do not promise a depth based on a ground-balance value. The same displayed number can represent different behavior across detectors, coils, modes, and software. Depth must be evaluated with representative targets in the actual soil.
Ground Balance at Saltwater Beaches
Wet salt is conductive and can produce a broad response. Dedicated Beach multi-frequency modes are designed to manage this environment, but metal detector ground balance and technique remain important. Keep the coil parallel and avoid abrupt height changes. Rebalance or retune when moving from dry sand to saturated sand or shallow water.
Black sand may add magnetic mineralization to the conductive salt problem. Sensitivity may need to be reduced. A setting that is stable on dry upper beach can become unusable at the surf line. Treat each zone as a new ground condition.
Waterproof claims must be checked separately. A Beach mode does not guarantee that the control unit or headphones can be submerged. Follow the published depth rating and connector-care instructions.
Ground Balance for Natural-Gold Prospecting
Small natural gold and mineralized soil can both produce weak, complex responses. Ground balance is central to hearing the difference. Establish a smooth threshold, use the Gold mode or purpose-built detector, and rebalance when the threshold begins to rise and fall with normal coil motion.
Test stones individually only after mapping their location. Some hot rocks produce a positive response, others a negative or breaking response. A small gold target close to a hot rock can be masked, so avoid creating a rigid rule that every broken tone is unwanted ground.
Minimize metal on the operator. Boots, pick heads, belt hardware, and phones can enter the coil field during pumping or slope work. Keep the test area clear so the balance represents soil.
Ground Balance and Target Masking
Poor balance can make the ground response overlap a weak target, effectively masking it. Heavy discrimination then adds another layer of rejection. Start with correct balance and stable sensitivity before increasing target filters.
In iron-contaminated ground, a smaller coil and slower controlled sweep can improve separation. Cross-sweep every uncertain response. If the target disappears in one direction, it may still be a non-ferrous item close to iron. Review What Is Target Masking? for the full explanation.
Ground-Balance Numbers: What They Mean
The displayed number is meaningful within that detector’s own system and mode. It is not a direct percentage of mineralization and should not be compared across brands. On some detectors, a high ground-balance value may correspond to a particular response range; on another, the scale and direction differ.
The Legend manual notes that ground-balance range can differ in a conductive beach multi-frequency option, and that balance values may vary between single and multi frequencies. This is a useful reminder: the number is part of a complete operating configuration.
| It can help you | It cannot prove |
|---|---|
| Return to a recorded setup on the same detector and mode | Exact soil chemistry |
| Notice that ground conditions changed | Guaranteed target depth |
| Compare repeated balances on nearby clean patches | That a target is gold, silver, or a cavity |
| Diagnose an obviously incorrect reference | Equivalence with another brand’s number |
Device Examples from Orient Detectors
The MANTICORE specification lists automatic, manual, and tracking ground balance. Its search modes include All-Terrain, Beach, and Goldfield options, each designed around different search conditions. A user should balance within the selected mode and avoid assuming that a value from another mode is automatically correct.
Nokta lists automatic, manual, and tracking ground balance for The Legend 2. Its official page also distinguishes multiple beach and land frequency options. The earlier Legend manual states that balance affects the currently selected mode and may need to be performed separately for different beach multi-frequency choices.
Gold Stinger X6 product information lists advanced ground balance and adjustable sensitivity. Use balance to establish stable operation for the selected coil and system. A screen visualization or estimated depth should be interpreted only after the base signal has been repeated and checked.
A Field Worksheet for Ground Balance
A metal detector ground balance worksheet turns a temporary setting into evidence that can be compared across coils, modes, soil zones, and future visits.
| Field | Example entry | Purpose |
|---|---|---|
| Location zone | North field, dry red soil | Separates different ground conditions |
| Mode/frequency | Field Multi | Ground value may depend on configuration |
| Coil | 11-inch DD | Coil changes ground volume |
| Balance method/value | Auto, repeated 43/44/43 | Shows repeatability |
| Sensitivity | Stable at 22 | Documents noise limit |
| Observed ground | Moderate iron indicator, two hot-rock patches | Connects settings to behavior |
Common Ground-Balance Errors
- Balancing over metal: scan the patch first and move if any localized response appears.
- Tilting the coil: keep it parallel so height is the controlled variable.
- Using violent pumping: smooth motion prevents cable and impact noise.
- Copying another detector’s number: use the scale and instructions for your model.
- Ignoring a mode change: some detectors store balance separately by mode or frequency choice.
- Leaving sensitivity unstable: lower it if the detector cannot distinguish ground from random noise.
- Never rechecking: moisture, soil, and mineral concentration can change across the site.
Troubleshooting Ground Noise
| Symptom | Likely explanation | Action |
|---|---|---|
| Tone on every downward pump | Incorrect balance | Repeat automatic balance or adjust manually per the manual |
| Values differ widely on repeated balance | Metal, mixed ground, or poor technique | Move, scan for targets, and pump smoothly |
| Stable while stationary but noisy when sweeping | Changing ground, coil-height variation, or cable motion | Level the sweep, secure cable, test tracking |
| Noise only in one patch | Hot rocks, fill, brick, or localized mineralization | Map patch, cross-check, and avoid global over-adjustment |
| No balance value obtainable | Very conductive or weak ground, or a target below | Move to clean soil and use the recommended site mode |
Quick Ground-Balance Decision Checklist
Use the manufacturer’s default when the detector is stable and pumping over clean soil produces little response. Perform automatic ground balance when the soil creates a noticeable tone, the site changes, or the manual recommends it. Use tracking when conditions vary gradually and testing shows that it improves stability. Reserve manual offsets for controlled comparisons and experienced operation.
- Scan the balance patch for a localized target first.
- Keep the coil parallel and use smooth motion.
- Repeat automatic balance to check whether the value is consistent.
- Balance again after changing mode, frequency, or coil when required.
- Reduce sensitivity if the detector cannot settle.
- Lock or pause tracking while checking a target if the manual advises it.
- Document the mode, value, soil condition, and target response.
The best evidence of correct metal detector ground balance is improved behavior: less response to ordinary coil-height changes, a steadier threshold, and clearer repeatable target signals. The number on the display supports that judgment but does not replace it.
Recheck the result after several minutes of normal searching. A balance that seemed correct on one patch may become noisy when the soil texture, moisture, or iron content changes. Pause over a clean area, pump the coil smoothly, and compare the response with the original setup. A short repeatable routine is more dependable than assuming one balance value applies to the whole site.
Additional Ground Balance FAQs
Does every detector have manual ground balance?
No. Some use automatic or fixed systems. Check the specifications and manual for the exact model.
Why does the ground-balance value change with frequency?
The soil response is being measured through a different operating configuration, so the calculated reference can change.
Can tracking remove a real target?
Tracking is designed to follow ground, but repeated sweeps over a weak target can affect behavior on some systems. Follow the manual and consider fixed balance while checking a target.
Do I balance again after changing coils?
Yes. Rerun noise cancel and ground balance because the coil changes the detector’s response to soil and interference.
What if the ground response never becomes silent?
Minimize it, confirm the correct mode, and lower sensitivity. Some mixed terrain cannot be perfectly cancelled.
Does ground balance identify hot rocks?
No. It reduces the surrounding ground response. Individual rocks may still differ and require cross-checking.
FAQ
Do I need ground balance in mild soil?
Yes, although the adjustment may be small. A quick balance check gives you a stable reference.
How often should I ground balance?
At the start, whenever the soil changes, after moving from dry to wet ground, and whenever the detector begins reacting to ordinary sweep motion.
Can ground balance make a detector deeper?
It can improve usable performance by reducing the soil response that masks targets, but it cannot guarantee a specific depth.
Should I ground balance over a signal?
No. Find clean soil first, or you may tune the detector around the target response.
