MSRP: 7.490 $

SKU: OR1000EN26

Evolution NTX

7.490 $

Evolution NTX 3D ground scanner can be used by treasure hunters, gold seekers, metal detectorists and archaeologists

Brand

OKM

Depth

8 Meter

Made In

Germany

Operating Principle

3D imaging

Warranty

2 Years

Fast worldwide shipping on all orders

  • Online support 24/7
  • Pre and after sales services
Guaranteed Safe Website

Contact Sales Department Request Proforma Invoice

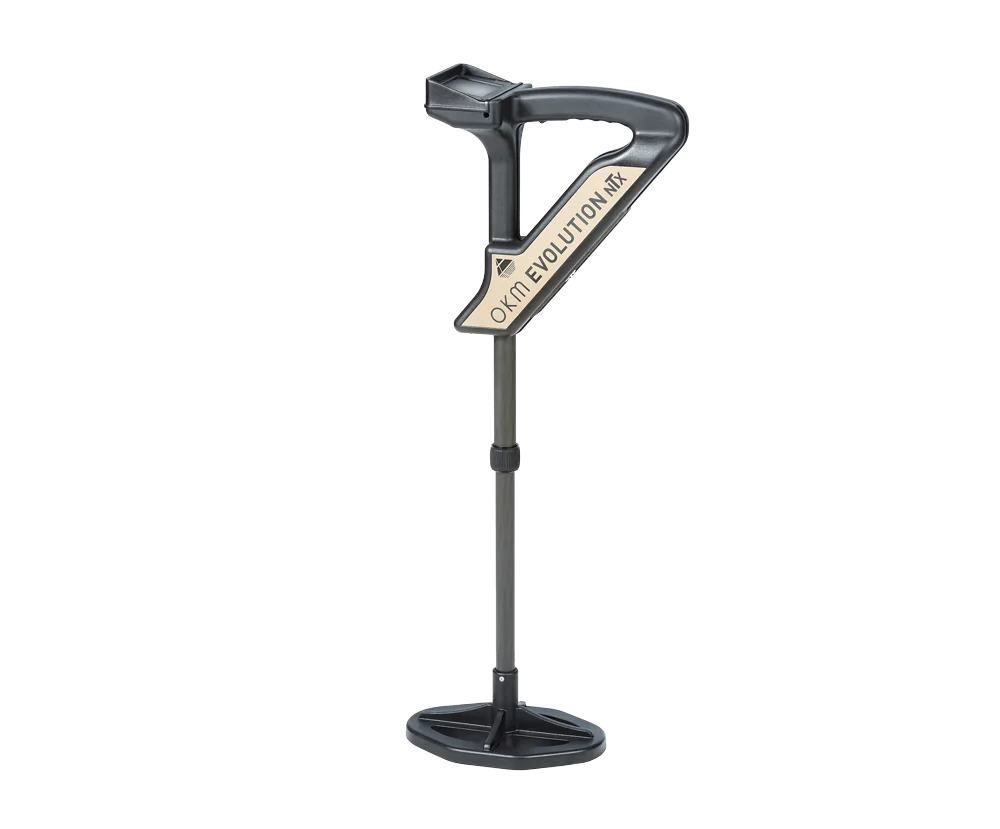

Evolution NTX is a new enhanced and improved version of Evolution metal detector that achieved a great success among the prospectors and treasure hunters.

Evolution NTX Features

Device Uses

Evolution NTX OKM 3D ground scanner can be used by treasure hunters, gold seekers, metal detectorists

and archaeologists who are looking for buried objects, hidden artifacts or other lost items such as:

  • Ancient buried treasures from ancient civilizations such as treasure chests.
  • Lost golden or metallic objects such as jewelries including rings.
  • All types of ferrous metals including iron and magnetic metals.
  • Hidden underground cavities and anomalies such as tunnels.

impact-findings

Telescopic Probe & Search Coil

Evolution NTX used as multi-function device either as traditional metal detector or as 3D ground scanner also.

For 3D ground scanning it uses a powerful telescopic probe (sensor) for conducting the scan.

However, it uses a special designed search coil when it used as metal detector.

Operating Modes

Evolution NTX is the first device to combines typical VLF metal detector functionality with 3D ground scanning capabilities.

So, the device includes two operating modes that reflect the function and use of device in either two cases.

3D Scan Mode

conducting-scans-with-okm-evolution-ntx-w540-i735

This operating mode used to perform a detailed 3D ground scanning for defined rectangular area using the measurement sensor (probe).

The user can adjust scan parameters  such as  scan line and pulses directly on touch screen as in following image :

okm-evolution-ntx-3d-scan-w540-i737

The scan data is saved to the memory inside the main unit , so the user can transfer it to any computer.

with installed Visualizer 3D software , the data analysis software which used to display a 3D graphical representation

of scan data that present the real structure of the ground and its buried objects in this scan area.

By using Visualizer 3D program, the user can determine size and depth of potential treasures and findings before digging.

Live Sound Mode

okm-evolution-ntx-with-telescopic-search-coil-w540-i736

Live sound mode used by installing the search coil, thus the device act as VLF metal detector

to find all buried ferrous and non-ferrous metal objects such as rings, coins, relic at small depths

So, In this mode the device makes a sound (acoustical output) upon detecting of any metallic objects,

beside that the device displays a graphical indication of received signals on its screen also.

okm-evolution-ntx-live-sound-w540-i738

Touch Screen

Evolution NTX includes a high-resolution colored display screen with touch support, so the user can use it

directly to adjust different settings of the device like choosing the operating mode or just to display many indicators depending on operating mode.



We are orient detectors, providing latest gold detectors , metal and underground water detectors from international authorized manufacturers at best prices.

Take advantage of our constant offers and downloads on the prices of devices, and we also offer gifts to our customers periodically.

Additional information

Brand

OKM

Depth

8 Meter

Made In

Germany

Operating Principle

3D imaging

Warranty

2 Years

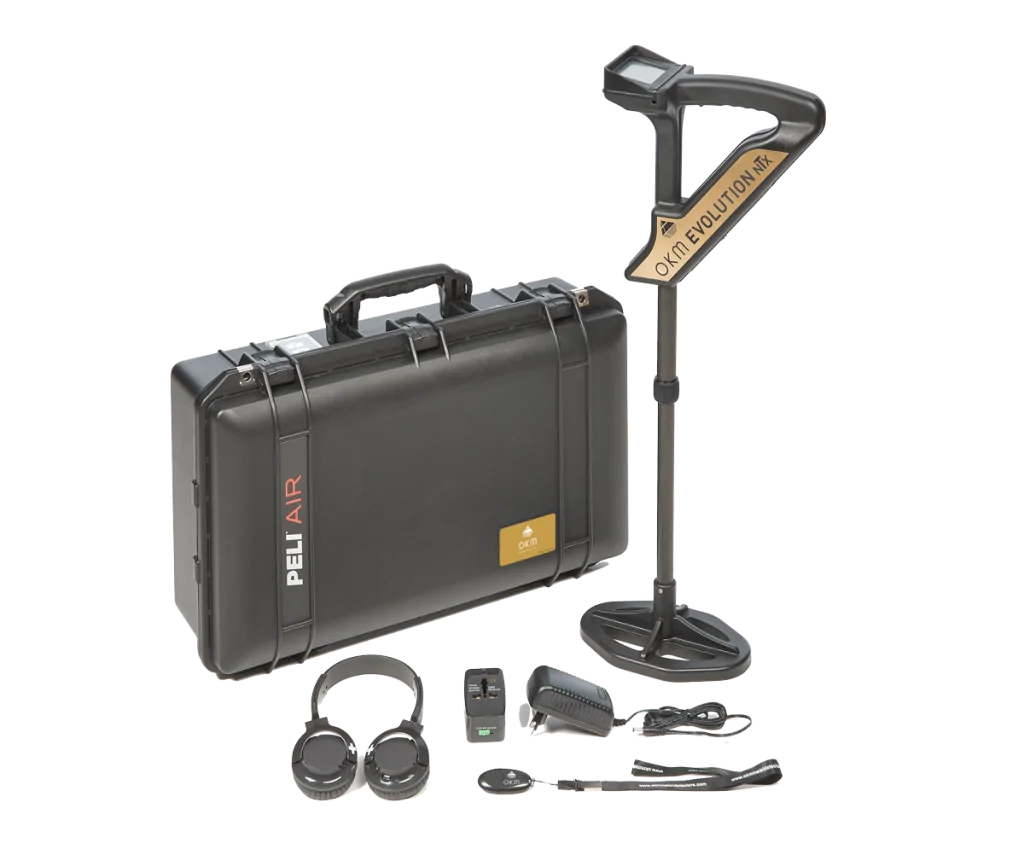

Package Contents

  • Control unit
  • Charger for control unit
  • Wireless headphones (Bluetooth)
  • Windows Tablet PC
  • Travel adapter
  • USB bluetooth dongle
  • User’s manual
  • Waterproof and shock resistant Peli case
  • 3D software ( “Visualizer 3D” )

Specifications

Dimensions (H x W x D) 540–810 x 150 x 280 mm
Weight approx. 1.5 kg
Input voltage (max.) 19 V DC, 3.16 A, 60 W
Processor / Main CPU Cortex M3, 32 MHz
Processor / Slave CPU Cortex M0, 24 MHz
Display 3.5” Resistive touch, 480 x 320 Pixel
Display CPU Cortex M3, 32 MHz, 128 KB RAM
Data memory 4 GB
Sample rate 1024 values / second
Measurement resolution 16 bit
Operating temperature –10°C – 60°C
Storage temperature –20°C – 70°C
Audio Internal speaker / Bluetooth
Waterproof No
Technology GST / EMSR
Sensor technology / Coil technology SCMI-15-D / VLF
Air humidity 5% – 75%
