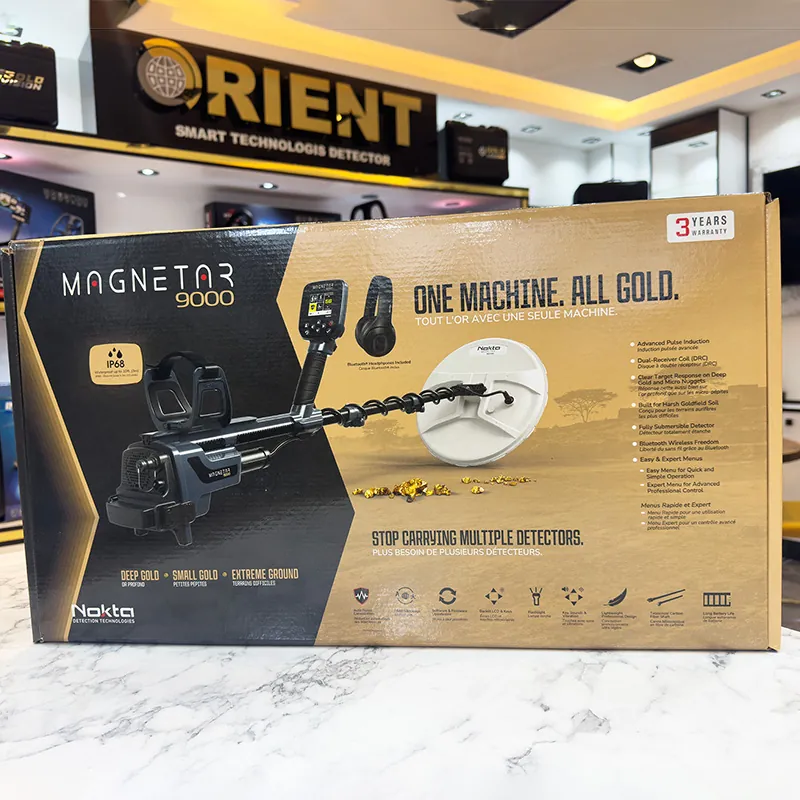

Nokta MAGNETAR 9000 Review: Deep Gold and Small Nugget Performance
magnetar 9000 is Nokta’s advanced pulse-induction gold detector built for deep gold, small nuggets and harsh mineralised ground. This review uses Nokta’s published specifications and explains what its coil system, controls and waterproofing mean for prospectors.
What is the MAGNETAR 9000?
Nokta presents the MAGNETAR 9000 as one machine for both deep gold and small gold. It uses Advanced Pulse Induction and a Dual-Receiver Coil (DRC), with Easy and Expert menus. Pulse induction is commonly selected for mineralised goldfields because it can maintain useful operation where ground response challenges many VLF detectors.
Coils and target response

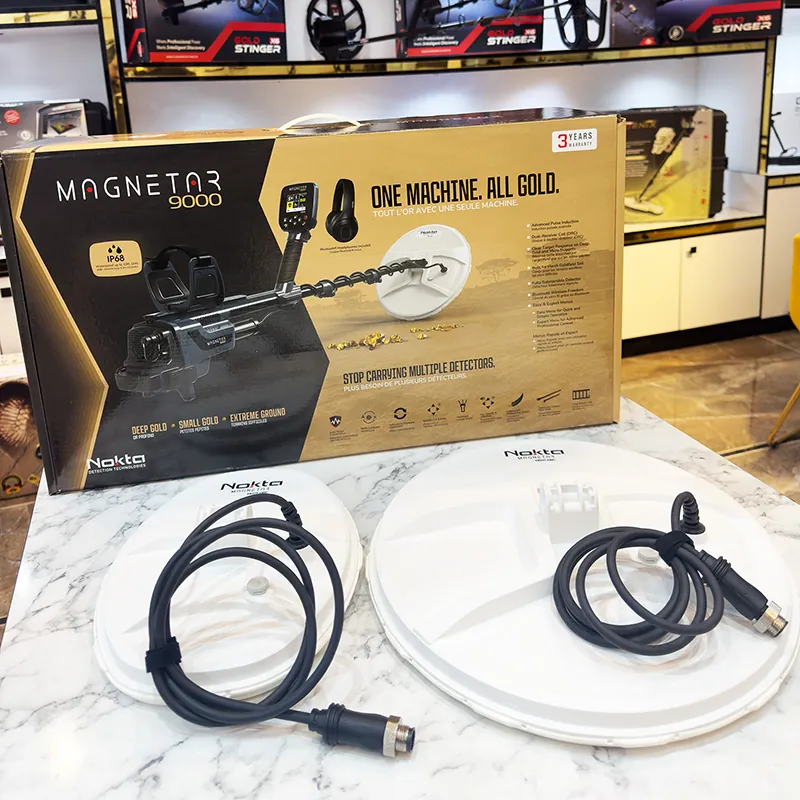

The package supports two coils: the MG37 measuring 14.5 x 13 inches and the MG29 measuring 11 x 8 inches. The larger coil can provide broader coverage and may favour larger, deeper targets in suitable ground. The smaller coil is easier to manoeuvre and can improve sensitivity to small targets and separation. Actual depth depends on target size, soil, sweep technique and settings.
Controls and specifications
| Feature | Nokta specification | Practical meaning |
|---|---|---|
| Operating principle | Advanced Pulse Induction | Designed for difficult mineralised ground |
| Search menus | Easy and Expert | Quick operation or professional adjustment |
| Display | Full-colour, 320 x 240 pixels | Clear visual feedback for settings and response |
| Weight | 2.4 kg with 11-inch coil; 2.8 kg with 14-inch coil | Harness, bungee or hipstick can improve comfort |
| Waterproofing | IP68 to 3 m / 10 ft | Suitable for submersion within the stated limit |
| Runtime | Up to 10 hours per battery; up to 20 hours total with two batteries | Useful for remote prospecting days |
Easy and Expert menus
The Easy menu reduces the number of decisions for a quick start. Expert mode exposes more control for experienced prospectors who need to tune response and stability in changing ground. Begin in Easy mode, then change one control at a time while recording the result. A quieter threshold is often more useful than maximum sensitivity that produces continuous ground noise.
Field strengths
- Pulse-induction platform designed for harsh goldfield soil.
- Dual-receiver coils intended to provide a clear response on deep gold and micro nuggets.
- Two coil sizes for balancing coverage, sensitivity and manoeuvrability.
- Built-in speaker, Bluetooth and 6.3 mm headphone socket.
- Collapsible shaft, bungee and hipstick support for long searches.
Limitations and buying considerations
At up to 2.8 kg with the larger coil, the MAGNETAR 9000 is a serious field instrument rather than an ultra-light park detector. It is designed around gold prospecting, so users wanting visual coin Target ID and aggressive discrimination may prefer a multi-frequency VLF model. Nokta specifies waterproofing to 3 m; keep charging and connection procedures within the manual’s instructions.
Who should buy it?
The magnetar 9000 is aimed at prospectors who work in mineralised ground and want one platform for deep gold and small nuggets. Its Expert menu and coil choices reward users willing to learn threshold control, ground response and careful sweep technique. It is less suitable as a first detector for casual coin hunting.
Why pulse induction matters in goldfields
Pulse-induction detectors send pulses into the ground and measure the returning response. They are often selected for mineralised ground because the system can be configured to manage strong soil responses. The MAGNETAR 9000 is designed around this principle, but ground balance, threshold, sweep height and coil control still determine whether a weak target is usable.
Choosing between the MG29 and MG37 coils
The MG29 measures 11 x 8 inches and is the more compact option for small targets, uneven terrain and areas where manoeuvrability matters. The MG37 measures 14.5 x 13 inches and covers more ground per sweep. A larger coil may improve response to larger deep targets in suitable ground, but it can also increase weight and make separation harder. Compare coils over the same test pieces and soil.
Easy mode and Expert mode
Easy mode is intended to get the operator searching quickly. Expert mode provides deeper control for prospectors who understand threshold stability and ground conditions. Change one setting at a time and keep notes. If the threshold becomes unstable, reduce the adjustment that caused the noise before assuming the ground contains a target.
Practical prospecting routine
- Inspect the area and remove obvious surface iron where permitted.
- Fit the coil appropriate to the target and terrain.
- Start in Easy mode and establish a stable threshold.
- Move the coil level and close to the ground without scraping.
- Cross-check a response from two directions and slow down over weak sounds.
- Switch to Expert mode only when you can describe what each adjustment changes.
- Mark, recover and re-scan the hole; a remaining response can indicate a second target.
Comfort, battery and water use
Nokta lists a weight of 2.4 kg with the MG29 and 2.8 kg with the MG37, including the battery. The supplied bungee and hipstick can reduce arm load during long searches. The rechargeable battery is rated for up to 10 hours, with up to 20 hours total when two batteries are available. IP68 protection is specified to 3 m / 10 ft; charging and connectors must remain within the manual’s safety instructions.
What the MAGNETAR 9000 is not
It is not a conventional coin detector with a universal 0–99 Target ID chart. Pulse-induction gold detectors are judged largely by audio response, threshold behaviour and ground performance. Do not compare a MAGNETAR response number or tone with a VLF detector’s conductivity scale.
Frequently asked questions
Is the MAGNETAR 9000 suitable for tiny gold?
Nokta positions the detector for micro nuggets as well as deep gold. Actual results depend on nugget size, coil, soil, sweep speed and settings.
Can I use it underwater?
Yes, within the manufacturer’s IP68 limit of 3 m / 10 ft. Follow the manual for seals, connectors and post-use care.
Is it suitable for beginners?
Easy mode offers a simpler start, but the detector is aimed at serious gold prospecting. Training and supervised field practice are strongly recommended for best results.
Verdict
The MAGNETAR 9000’s appeal is its combination of Advanced Pulse Induction, dual-receiver coils, small-gold sensitivity goals and deep-gold capability. Treat Nokta’s depth language as design intent rather than a guaranteed field result. Test it in representative ground and compare repeatable targets using the same coil and settings.
Check the official MAGNETAR 9000 specifications, Nokta manual library and the Orient Detectors product listing before purchase.
